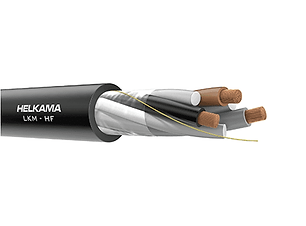

Helkama LKM-HF

Helkama LKM-HF

Helkama LKM-HF

Unarmored power and control cable 0,6/1kV

Manufacturer:

Helkama

Product Description

Marine approved unarmored power and control cable for fixed installation in areas where the mechanical and signal Interference protection are not required.

Main Characteristics

Rated Voltage
AC 0,6/1kV (1,2kV)
DC 0,9/1,5kV
Flame-retardant
IEC 60332-1-2
IEC 60332-3-22
Halogen-free
IEC 60754
Smoke emission
IEC 61034
Oil resistance
IEC 60811-404 (only SHF2)

Technical Reference

Specifications

Armor
No
Voltage Rating
0,6/1kV
Number of Conductors
1 - 37
Conductors Cross Section
1,0 - 300 mm2
Conductor
Stranded
Conductor Insulation
XLPE
Conductor Max Temperature
+ 90°C
Max Operating Temperature
+ 80°C
Min Operating Temperature
- 40°C
Sheath Insulation
SHF1
Sheath Color
Black
Halogen-free
Yes
Flame-retardant
Yes
Fire-resistant
No
EMC
No
Oil-resistant
No
Water Spray/Jet Resistant
No
Marine Approvals
ABS, BV, CCS, DNV-GL, KR, LR, NK, RINA, RMRS

Attributes

Value
